SPECIFICATIONS

Applicable Pipe: 6mm/0.24in, 8mm/0.315in, 10mm/0.4in

Brand Name: NONE

Hign-concerned Chemical: None

Material: Aluminum, Copper, Nylon, Steel

Max. Load Power: 3500W

Maximum Cutting Depth: 36mm/ 1.42in

Maximum Cutting Width: 3.4cm/ 1.34in

Number of Saw Blades: 5

Origin: Mainland China

Power Cord Length: 2.8m/ 9.19 ft

Power Source: Corded Electric

Saw Blade (D*W): 125*15mm/ 4.92*0.59in

Saw Blade Bore Diameter: 20mm/ 0.79 in

Saw Blade Material: Diamond

Speed: 7000 rpm

Water Pipe Length: 3m/ 9.84ft

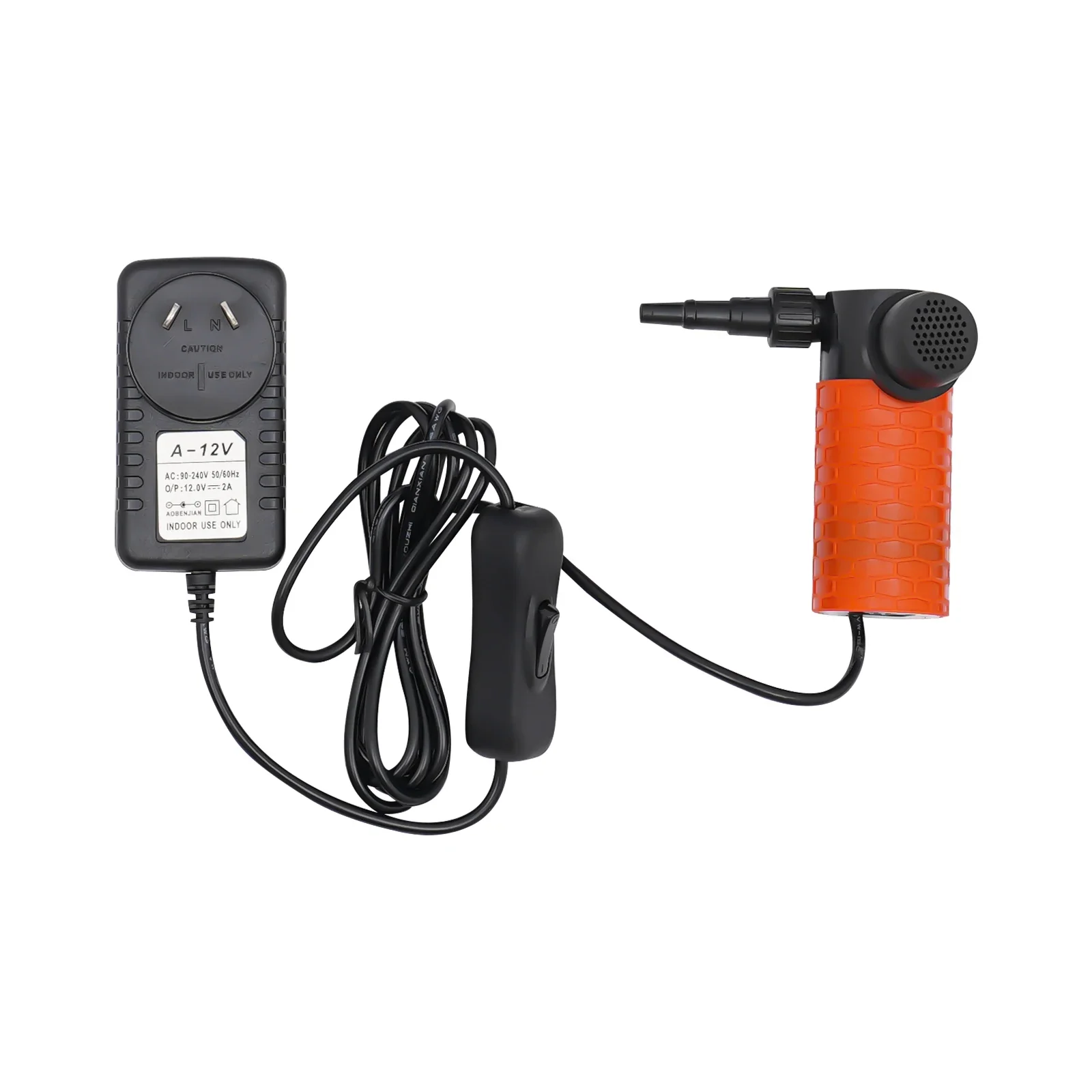

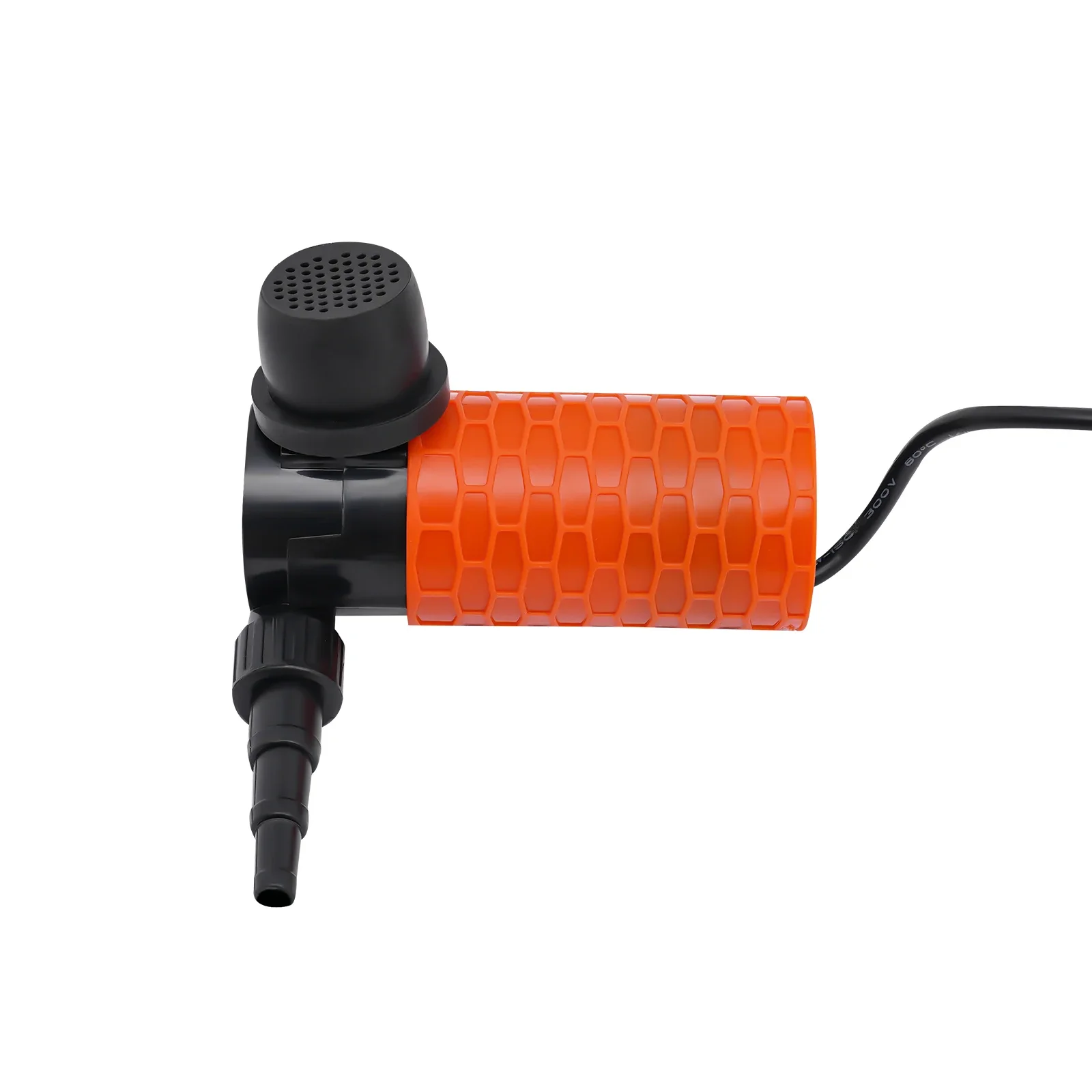

Water Pump Input: 90-240V AC 50/60Hz

Water Pump Output: 12V/2A

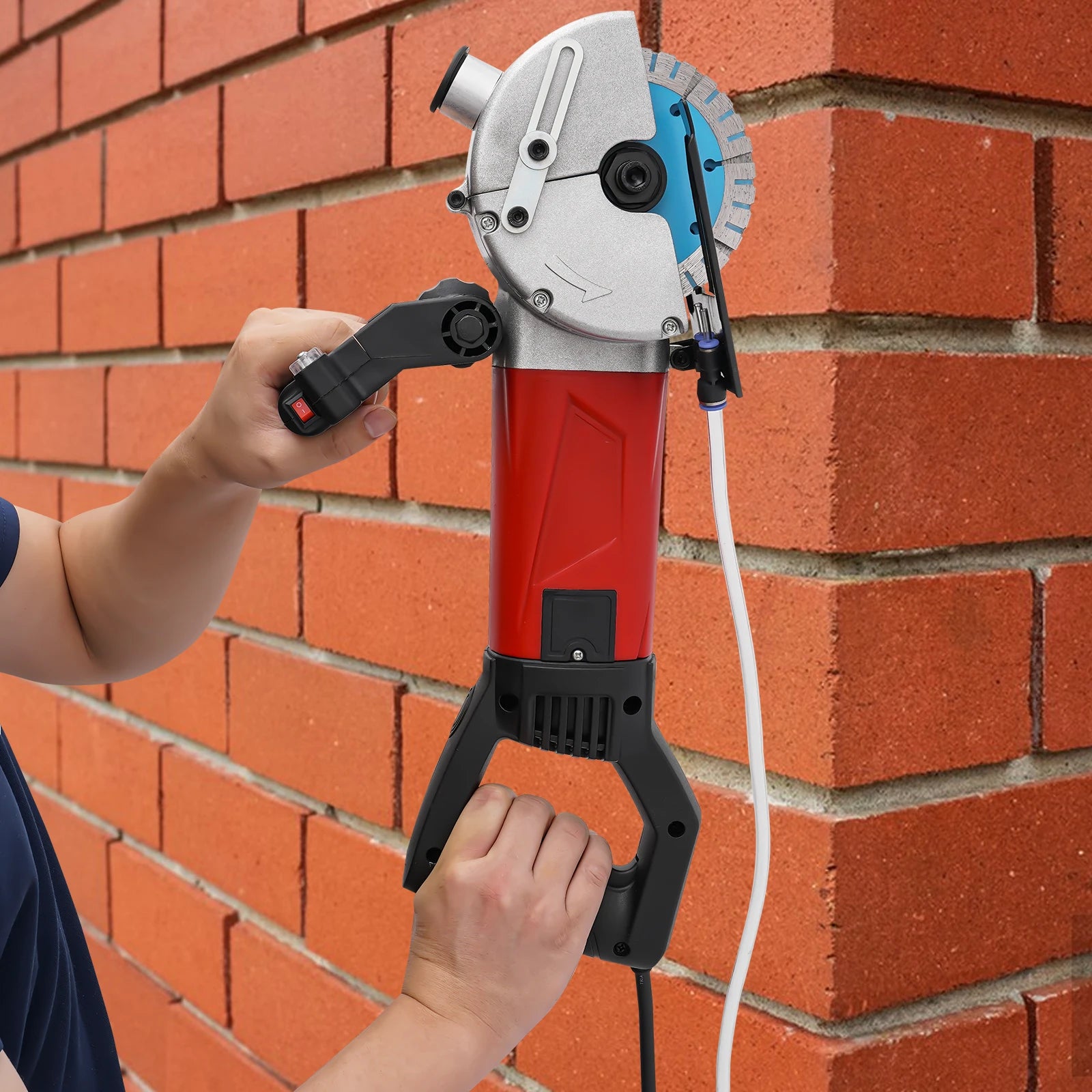

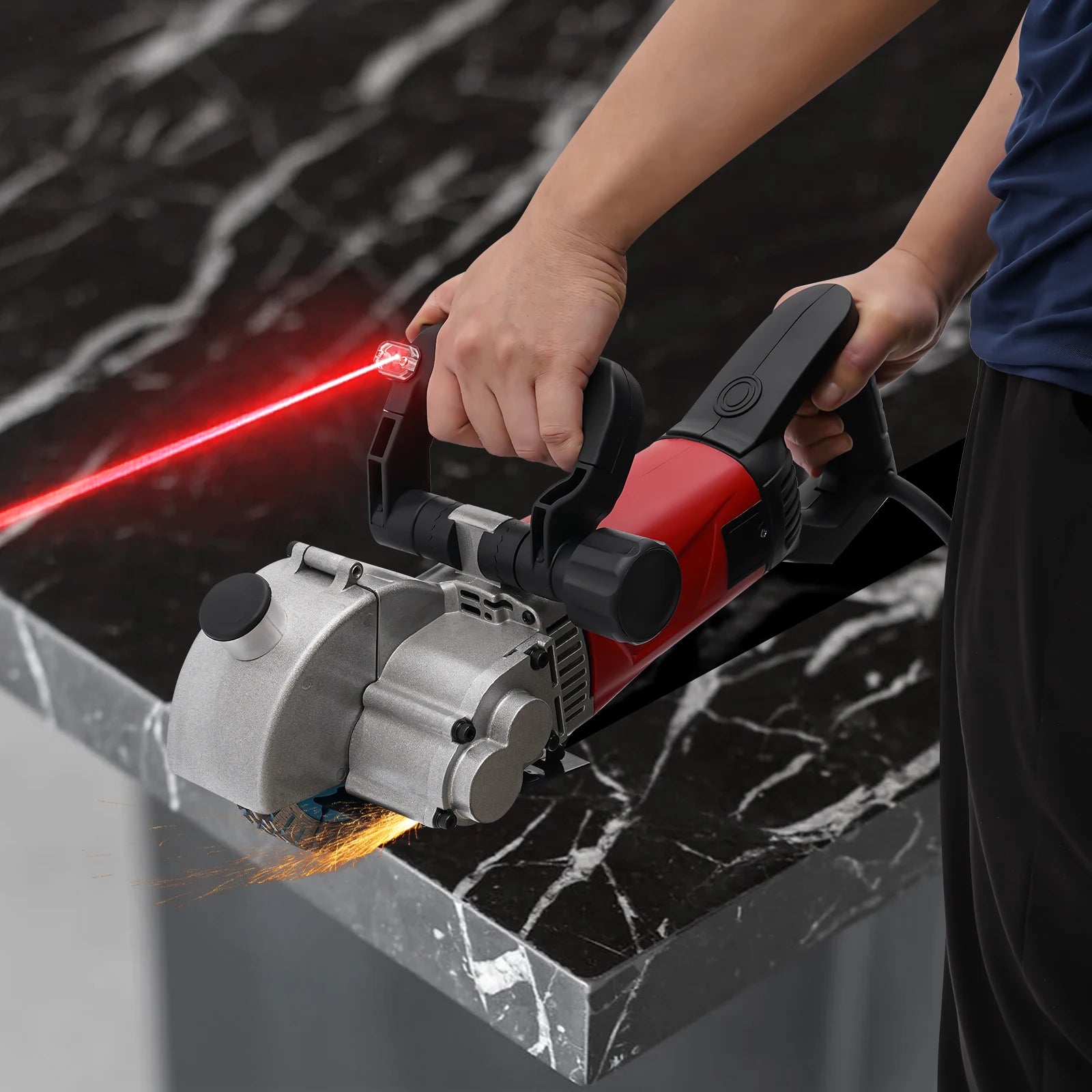

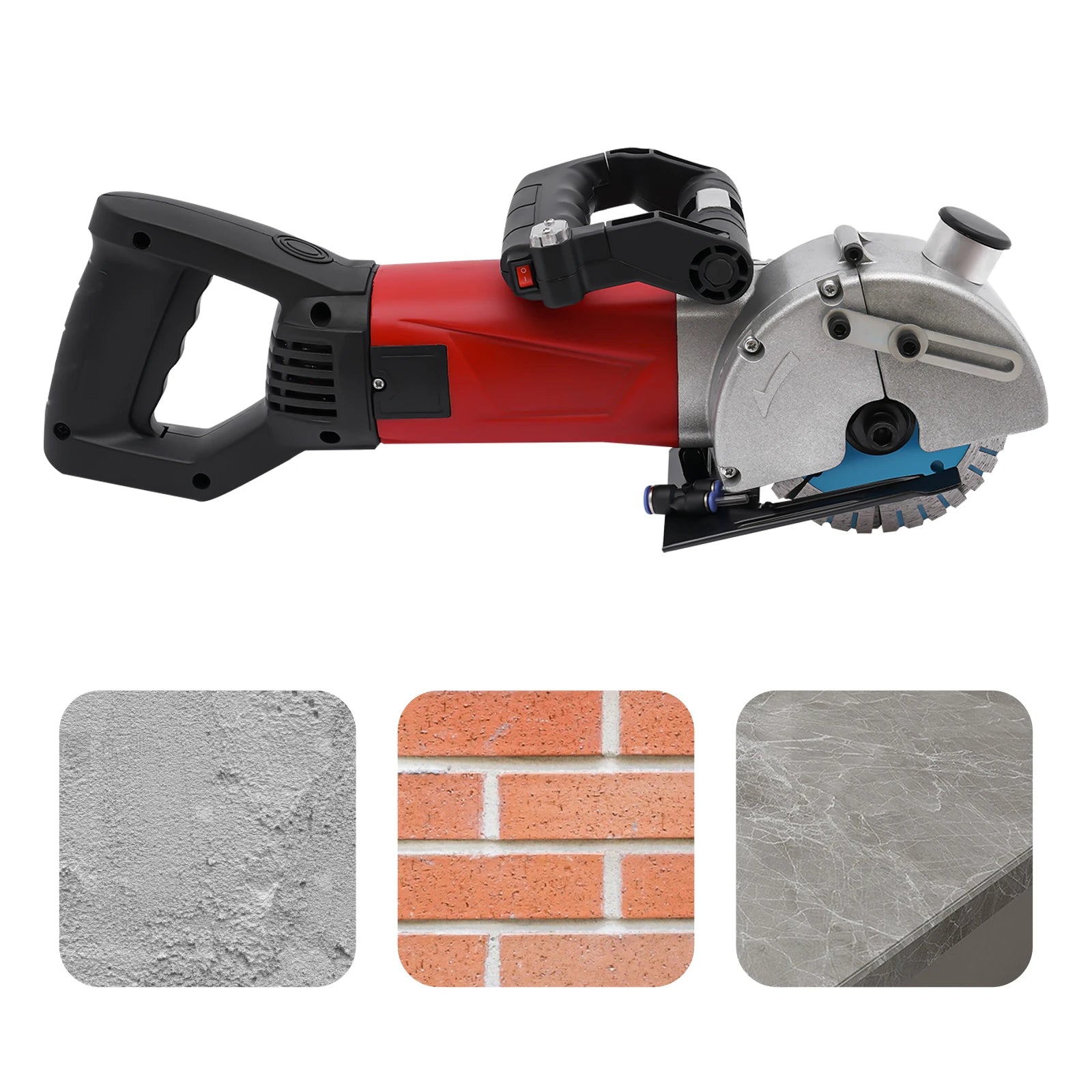

Slotted Machine, Electric Wall Groove Cutting Machine 2800 W, 125MM Concrete Grooving Cutter Chaser+5 Saw Blade, Precision Slotting Tool w/Infrared Aiming, Wall Chaser Machine For Brick Granite

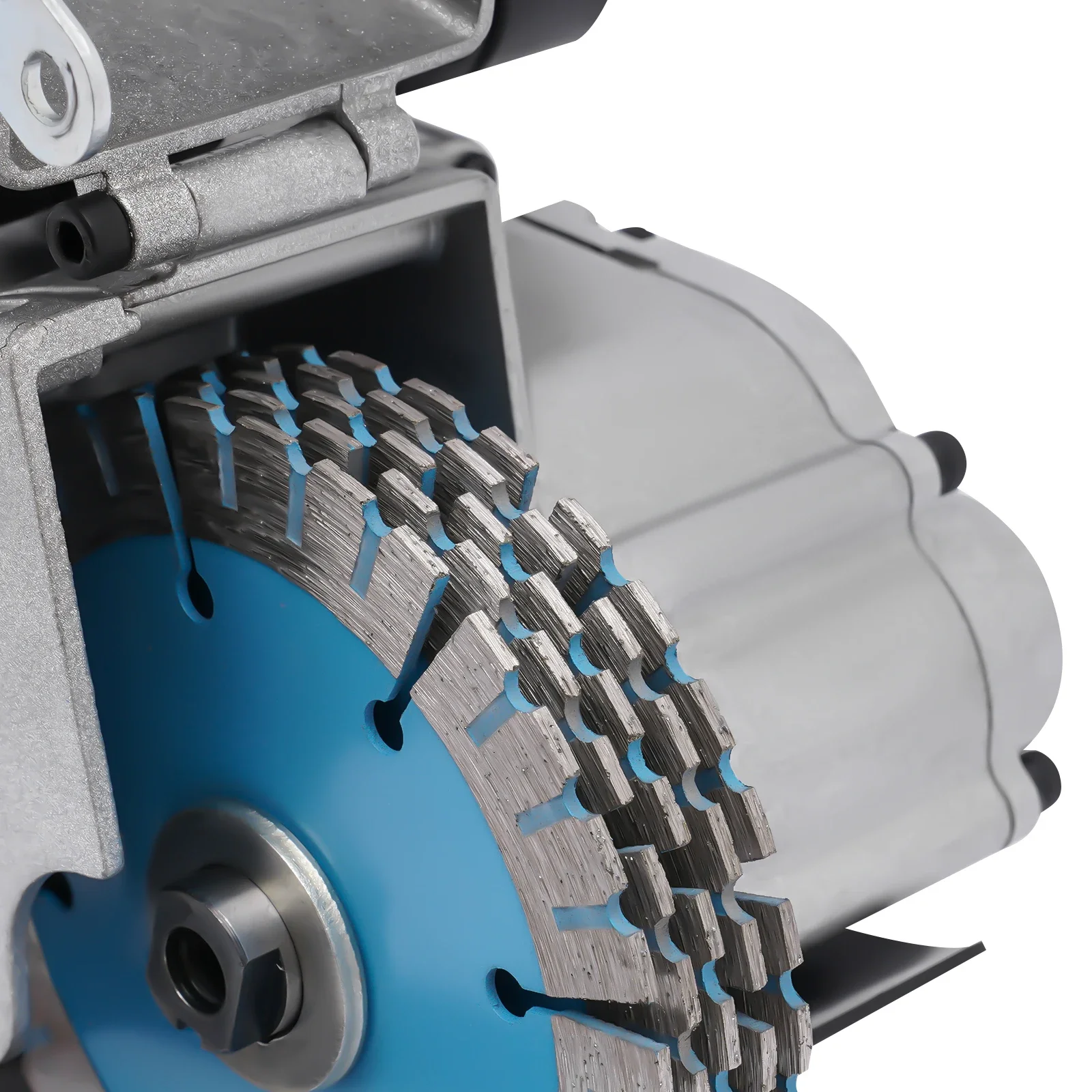

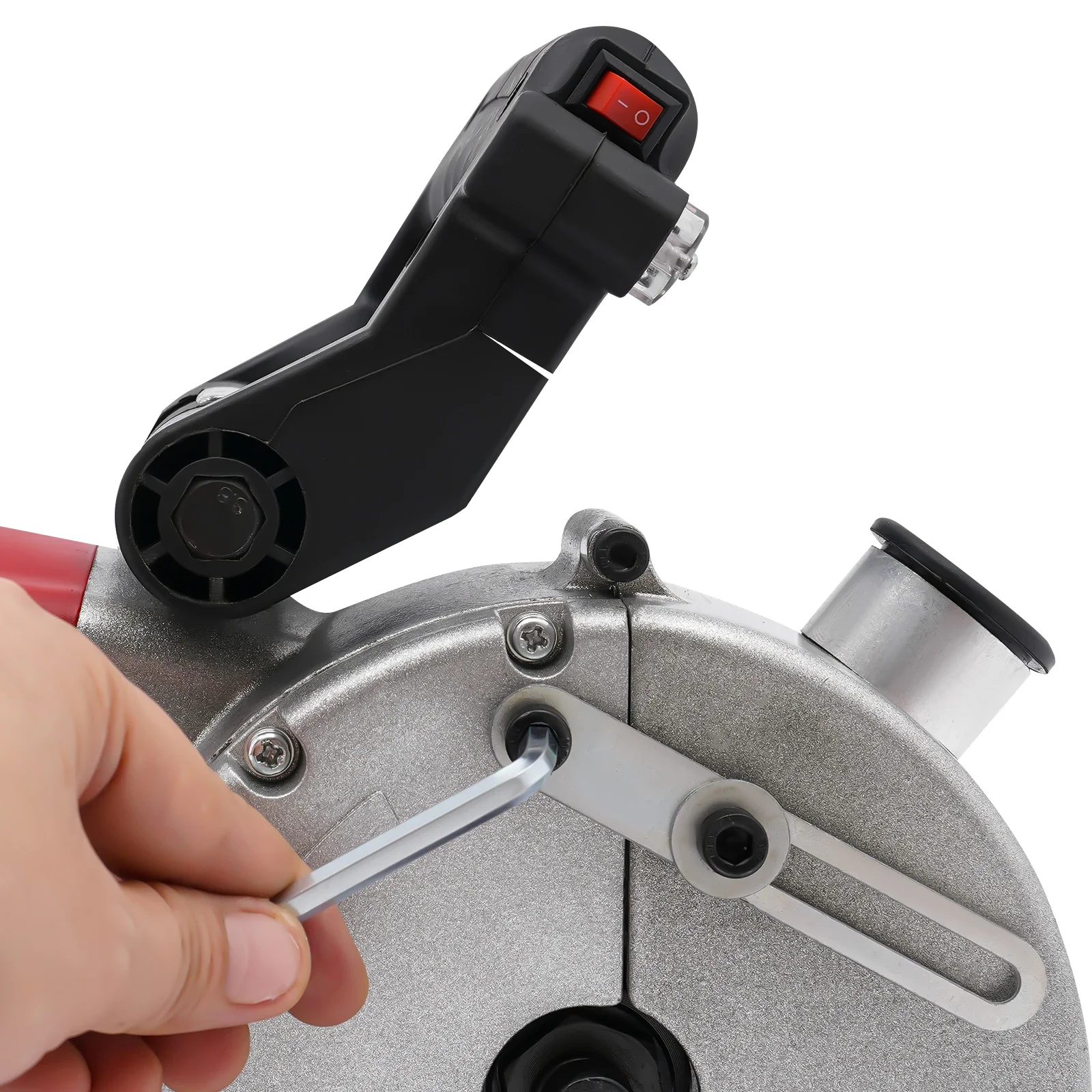

How to Install the Blades

1. Remove the front cover before installation to facilitate installation.
2. Remove the three screws and remove the front cover.
3. Place the saw blades with a spacer between each.
4. Put in the fixing screws and nuts.
5. Tighten the cover screws with a wrench.
6. Move the front cover back into position and tighten the screws.
