SPECIFICATIONS

AI Functions: Smart Tracking

Alarm Type: telefon Alarm,Local Alarm,FTP Photo,Email Photo

App: Videolink

App name: Other

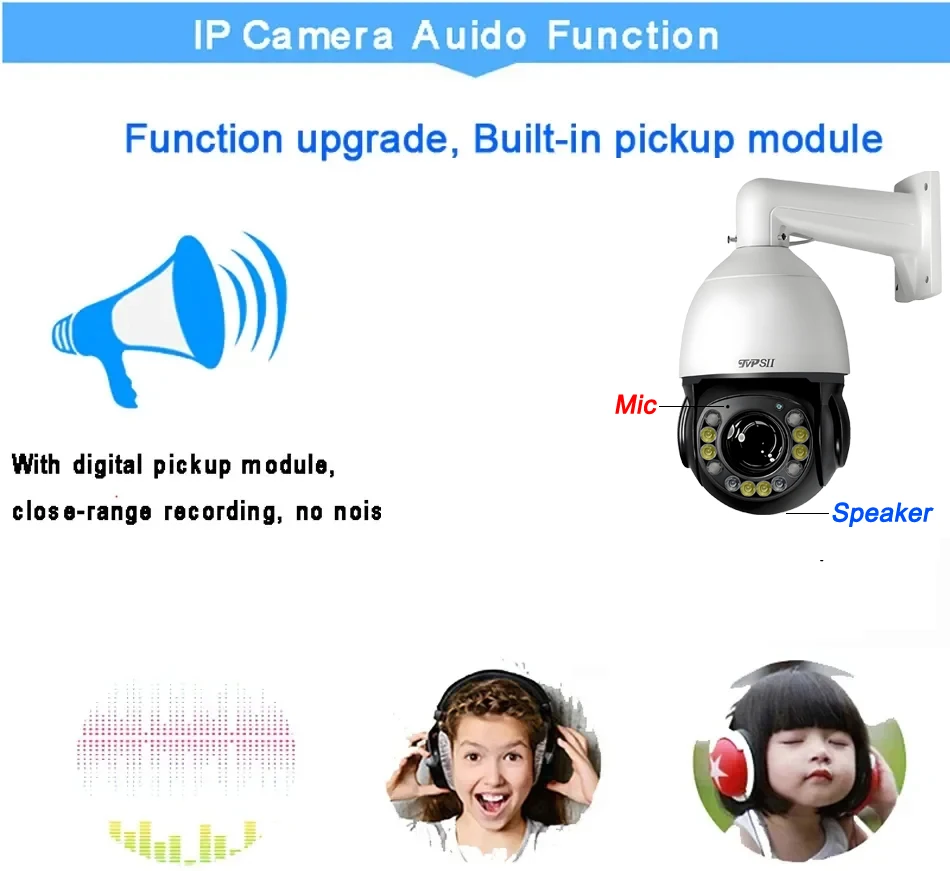

Audio Output: Two Way Audio

Auto Zoom: support

Auto tracking/Cruise: support

Brand Name: TVPSii

Certification: CE,FCC,RoHS

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP66

IR Distance(m): 150m-200m/400m-500m

Installation: Wall Mounted

Internal Storage: 512GB

Lens (mm): 2mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.01LUX-0.0001LUX

Model Number: TP-PTZ08W-54XS/90XS

Movement Range(Pan): 0°-360°

Movement Range(Tilt): Other

Operating Temperature: -50°- +60°

Optical Zoom: Other

Origin: Mainland China

Power Consumption(W): <30W

Power Mode: Mains Electricity

Power Source: With Poe

Power Supply: With POE

Power Supply(V): 12V/48V(POE)

Protocol: Hikvision,Dahua,Onvif

Rechargeable Battery: NONE

Rechargeable Battery Capability: Other

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP

TF Card: None

Video Compression Format: H.265

Viewing Angle : 360°

Warratty: 3 years

Zoom: 50x

Zoom type: Optical zoom

is_customized: Yes

• Compatible With Network Work Video Recorders Such as Dahua NVR;Hikvision NVR;XMeye NVR,TVPSII NVR and other Onvif protocol NVR.

• This Camera is POE PTZ Camera ,it can powered by 12V Power adapter,POE Switch,Poe injector or POE NVR.it can be controlled by phone(APP),PC(Web Browser,PC Software) and DVR NVR.

• Support automatic tracking,automatic cruise,and SD storage(so can choose buy camera with 128GB, 256GB SD Card).

• Support multiple cruise settings, fixed-point cruise, cruise between two points, cruise between multiple points and 360-degree cruise

• Automatic cruise and automatic zoom( Lens auto Zoom in and out) are the basic functions of the PTZ Camera. Many other brands of PTZ Camera do not support them, so Becarful!

• Mstar338Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,20fps (support SD Card,Auto Tracking,Auto Zoom)


• Support Auto Zoom,Auto Tracking human

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:There are many ommand statement in PTZ Menu.

A:Support AB preset scan, patrol scan, idle function, focus zoom, timer function, subject of dome camera and so on......

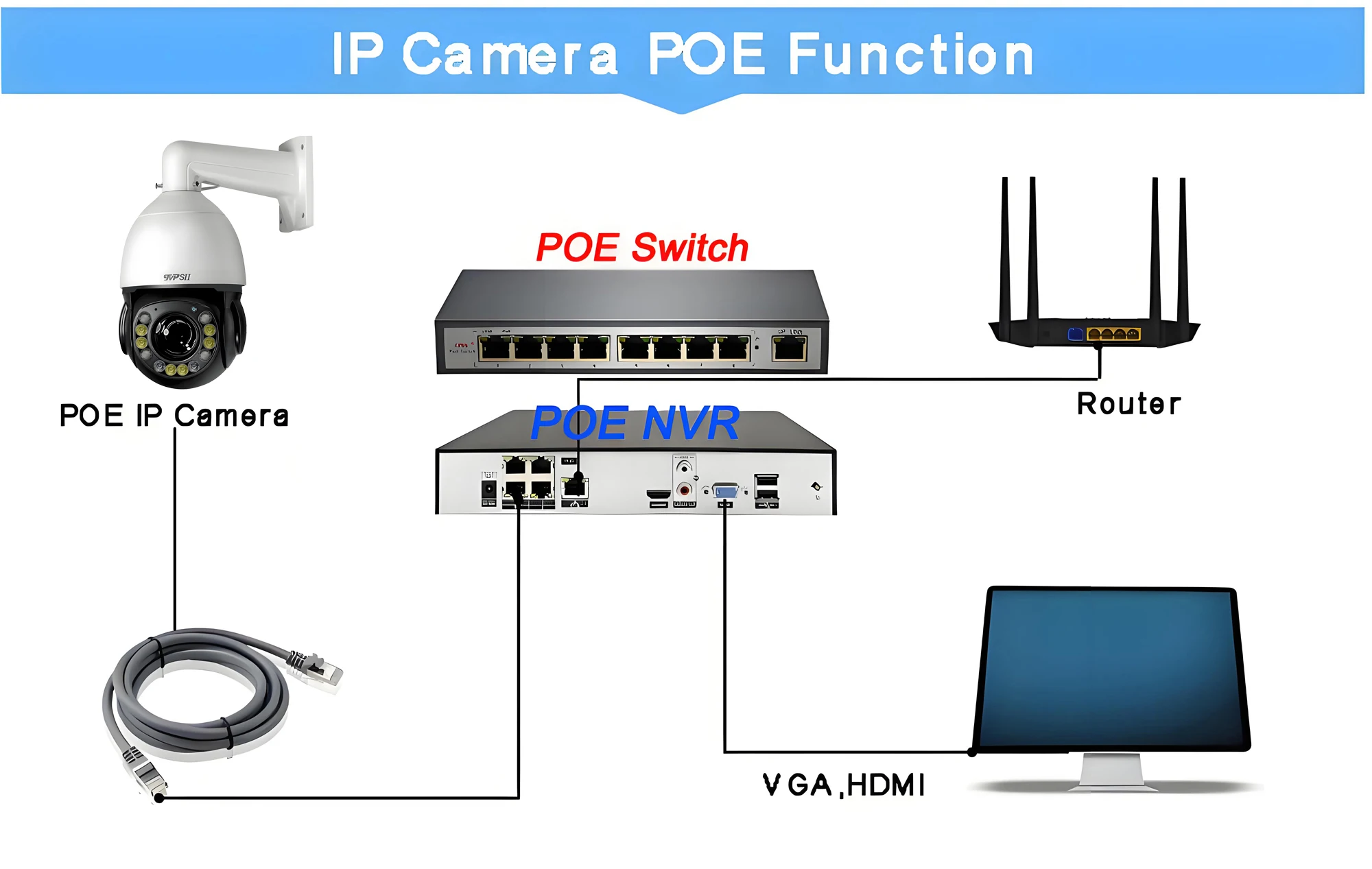

Q:What is POE function for IP Camera?

A:Only use Net cabletransmission signal and power supply,so not need use power adpater

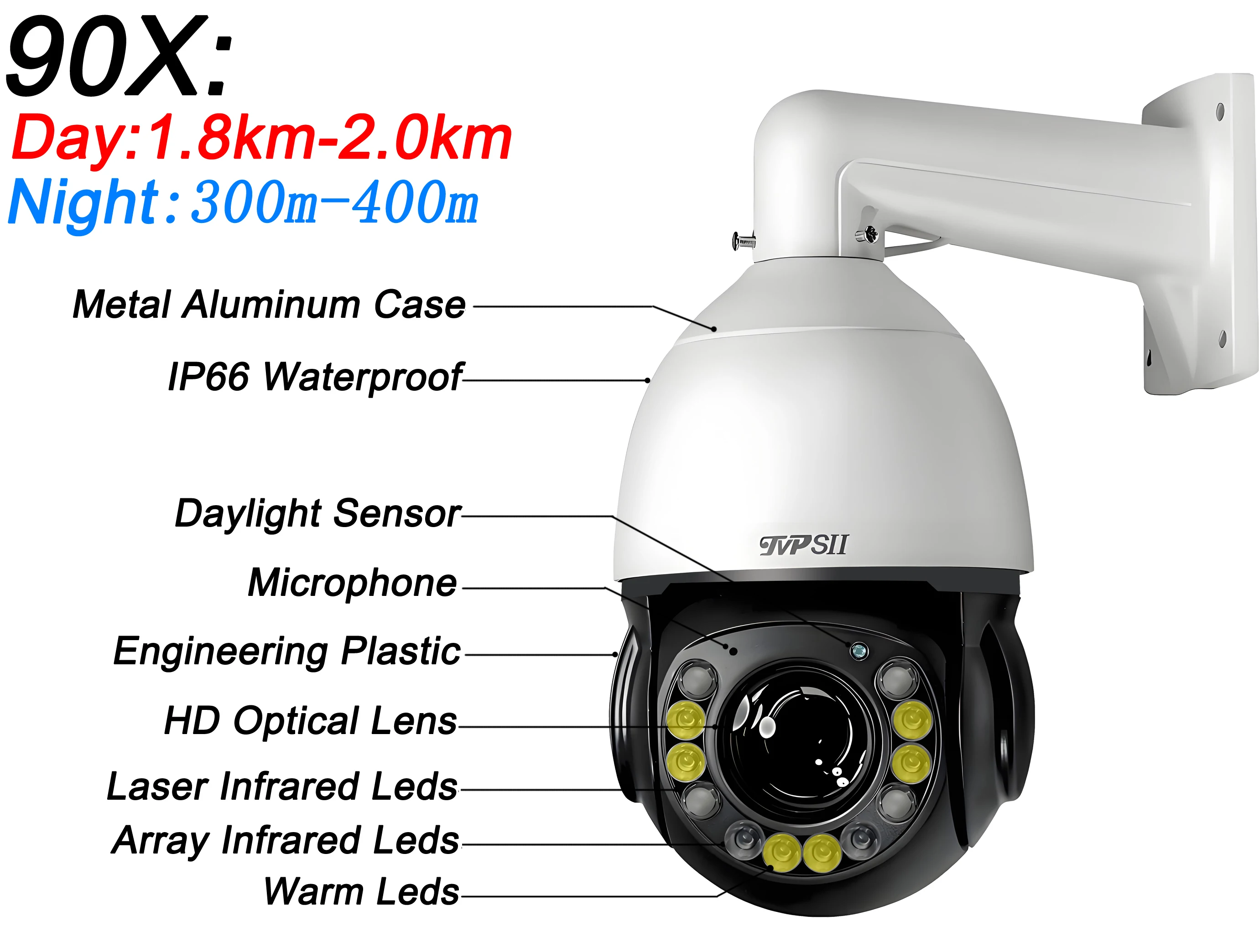

• 90X:Infrared distance(300m-400m)

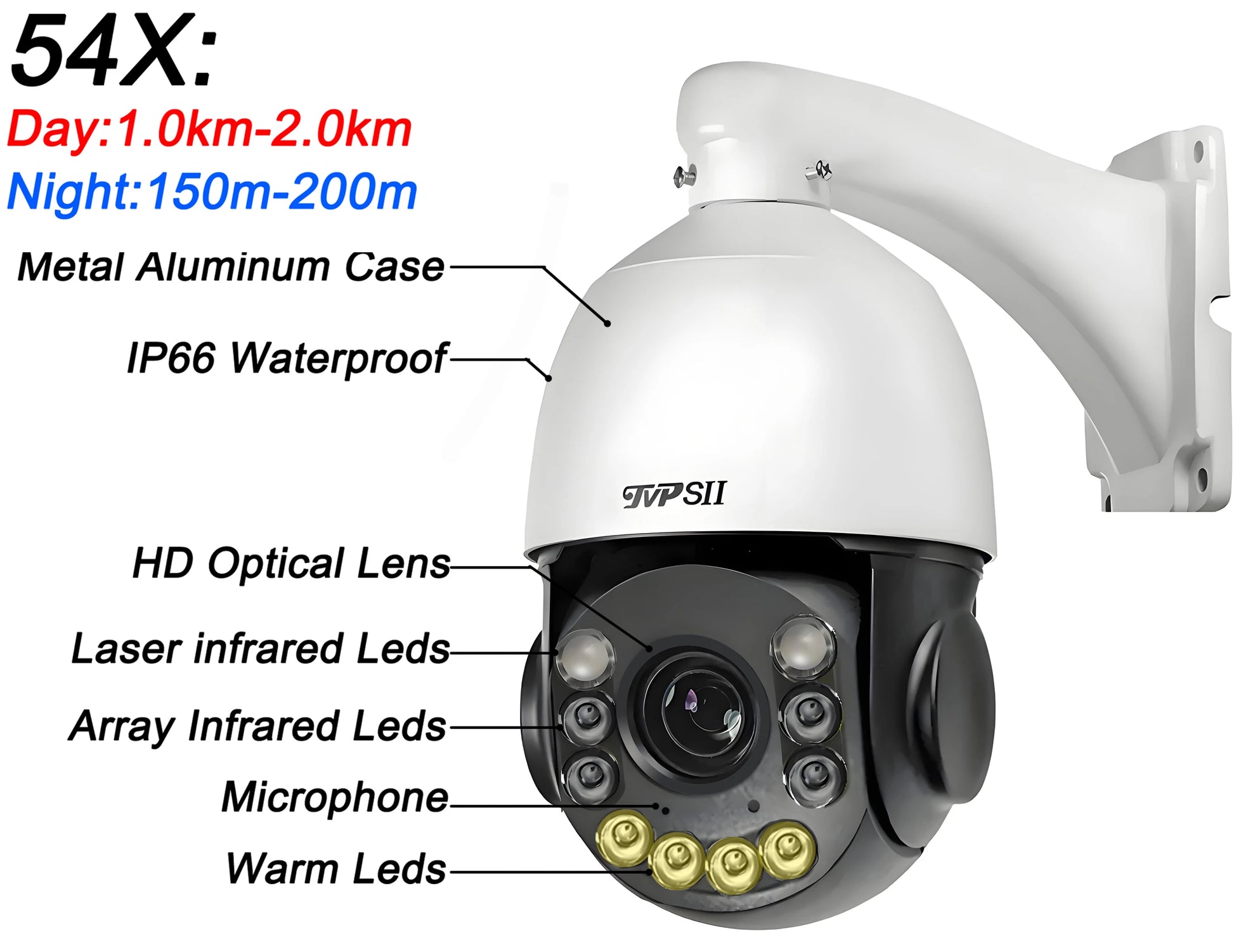

• 54X:Infrared distance(150m-200m)

Resolution	8MP 4K
system structure	Mstar338Q
CMOS Sensor	4K 8MP 1/2.8" Sony IMX415
Min illumination	Low illumination 0.001Lux
Video processing	H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format
Image output	8MP 3840*2160@20fps
Shutter	1/50 (1/60) seconds to 1/10000 seconds
Infrared Led Light	54X:4pcs infrared Led+2pcs Laser led+4pcs Warm Led 90X :6pcs Warm Led+4pcs laser Led+2pcs Infared Led
IR Distance	90X(300m-400m)/150m-200m(54X)
Conversion mode	Day and night conversion mode
Noise reduction	Support 2D/3D noise reduction
Wide dynamic	digital wide dynamics
Network Interface	1*RJ45 network interface, 10/100M adaptive
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable
Cruise settings	Support(Fixed-point cruise, cruise between two points,360° cruise,......)
Human auto tracking	Support
SD Card	Support(Max:512G)
POE Function	Support
Network protocol	TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP,RTMP
Presets	255
Optical focus	90X/54X
Protocol	Hikvision,Dahua,Onvif
Rotation	90 degrees vertical,360 degrees horizontal
Water resistance	IP66
Work Temperature	-50°C ~ +60°C

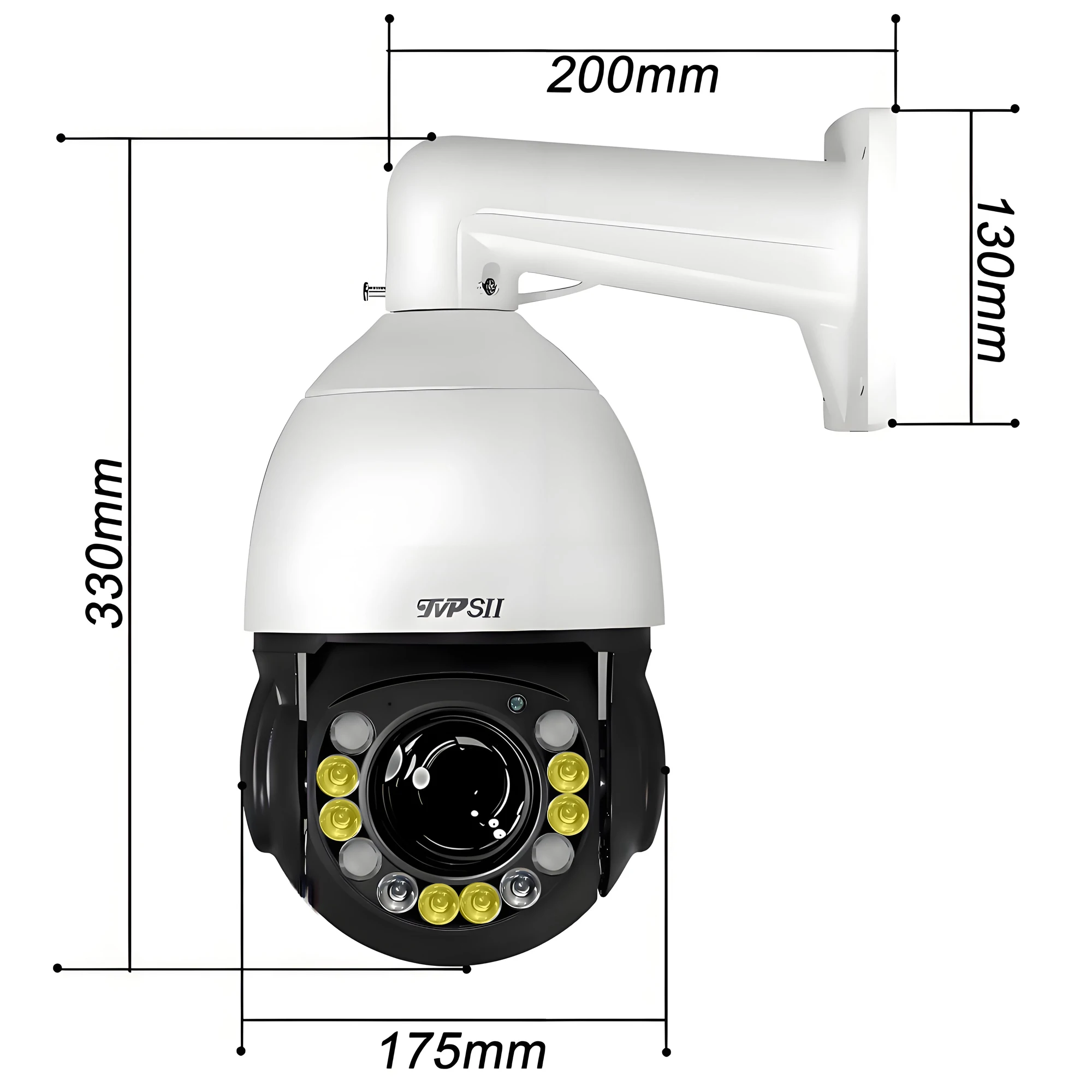

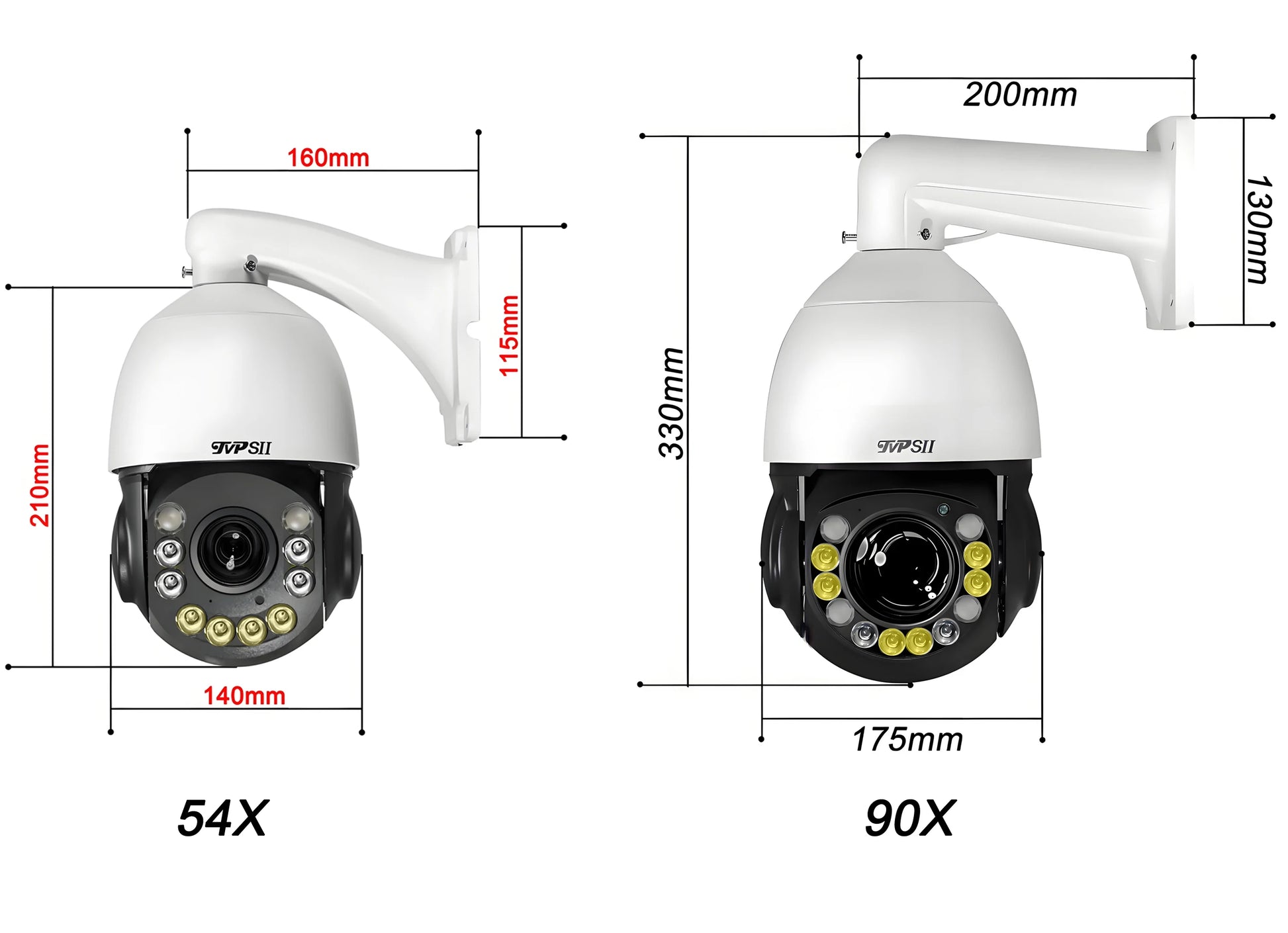

Weight	1.95kg(54X)/3.5kg(90X)
Phone monitoring	Videolink
Power Supply	Power by POE

Friendly Reminder:

• the default ip address is 192.168.1.XXX please use PC Software or NVR find ip address.

• if choose buy poe ip camera, this camera support 12V DC and 48V POE

• we only spent two days (48 hours)  for sent parcel , have tracking number and tracking number information.

• if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer.

NOTICE:

if you have any question about this Goods and Logistics,Contact us in the above manner,we will try our best to help you,if you input dispute or give negative feedback without responsible ,we not welcome unfriendly client,Thanks!
